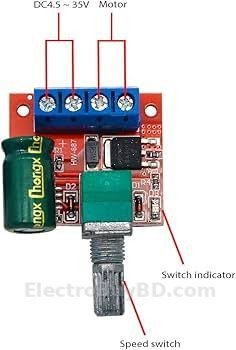

DC-DC 4.5V-35V 5A 90W PWM DC Motor Speed Controller Module Speed Regulator Control Adjust Board Switch 12V 24V PN35-1PCS
SKU: DC-DC 4.5V-35V 5A 90W PWM DC Motor Speed
Tk 130
Tk 110
āĻ¸ā§āĻ 20 āĻāĻžāĻāĻž
āĻ¸ā§āĻāĻā§ āĻāĻā§ (1)
āĻ¸ā§āĻĒā§āĻ¸āĻŋāĻĢāĻŋāĻā§āĻļāĻ¨:
Product Description
Quantity: 1 pieces
Weight: approx. 16 g
Material: Steel, Plastic, PVC
Package: 1 x 5V-35V Speed Control Switch
5V-35V Speed Control Switch
Operating voltage: DC4.5V -35V(Long-term use is recommended not to exceed 28V)
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)
.
Features:
Compatible with 4.5Vâ35V DC motors
Maximum current: 5A; Maximum power: 90W
PWM speed control for smooth motor operation
Compact and lightweight design
Easy integration into DIY electronics, robotics, and hobby projects
Durable and efficient with minimal heat generation
Adjustable speed using potentiometer

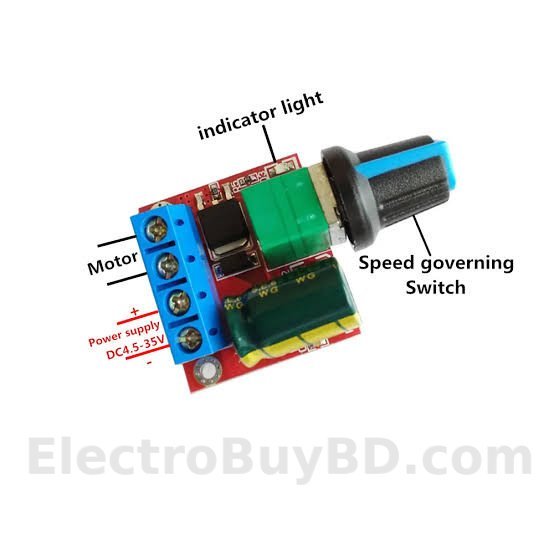

DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn! DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged. The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Mini PWM DC Motor Speed Controller Module is an efficient and compact solution for controlling the speed of DC motors in various applications. Designed to handle 4.5V to 35V DC voltage, up to 5A current, and 90W power, this module offers precise motor speed regulation for DIY electronics, robotics, and hobby projects.
The Mini PWM DC Motor Speed Controller Module features PWM technology that ensures smooth motor control, energy efficiency, and minimal heat generation. Its compact design allows easy integration into motorized gadgets, electric tools, and small robotic projects.
Whether you are a hobbyist, engineer, or electronics enthusiast, the Mini PWM DC Motor Speed Controller Module provides reliable speed adjustment, stable performance, and durability, making your DC motor projects more efficient and controllable.
What is the price of Mini PWM DC Motor Speed Controller Module 4.5V-35V 5A 90W Adjustable DC Motor Regulator in Bangladesh?
The latest price of Mini PWM DC-DC Motor Speed Controller Module 4.5V-35V 5A 90W Speed Regulator Control Adjust Board in Bangladesh is Price: ā§ŗ110.00 taka for this model. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
Buy Mini PWM DC-DC Motor Speed Controller Module 4.5V-35V 5A 90W Speed Regulator Control Adjust Board in Bangladesh from online at Dunia.com.bd.
In Bangladesh, you can get original Mini PWM DC-DC Motor Speed Controller Module 4.5V-35V 5A 90W Speed Regulator Control Adjust Board From Dunia.com.bd . We have few collection of latest Motor Driver Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.
FAQ
What voltage range does this module support?
The Mini PWM DC Motor Speed Controller Module supports 4.5V to 35V DC, suitable for small to medium DC motors.
What is the maximum current it can handle?
It can handle up to 5A current, ensuring safe operation for most hobby DC motors.
What is the maximum power rating?
The module supports up to 90W, ideal for small to medium-sized motor applications.
How is the motor speed controlled?
Speed is controlled via PWM (Pulse Width Modulation) technology, providing smooth and efficient regulation.
Is it suitable for robotics projects?
Yes, perfect for robotics, automation, and hobby electronics projects.
Can it be used with mini DC fans or pumps?
Absolutely, it can control mini DC fans, pumps, and motorized tools efficiently.
How do I adjust the speed?
Use the built-in potentiometer knob to adjust the motor speed smoothly.
Is installation easy?
Yes, the module has a compact design with clearly labeled input/output terminals for easy integration.
Does it generate heat during operation?
Minimal heat is generated due to efficient PWM design, but proper ventilation is recommended.
Where can I buy this module?
Available at Dunia.com.bd, a trusted supplier for electronics and DC motor modules.
