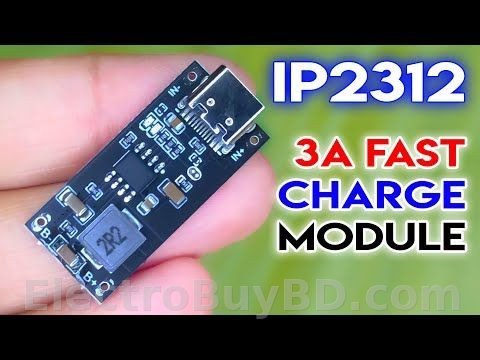

IP2312 3A Lithium Battery Fast Charge Module With USB Type-C
SKU: IP2312 3A Lithium
Tk 160
Tk 100
āĻ¸ā§āĻ 60 āĻāĻžāĻāĻž
āĻ¸ā§āĻāĻā§ āĻāĻā§ (1)
āĻ¸ā§āĻĒā§āĻ¸āĻŋāĻĢāĻŋāĻā§āĻļāĻ¨:
IP2312 â 3A Lithium Battery Fast Charge Module With USB Type-C
This Type-C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board, equipped with the IP 2312 main control chip, is designed for efficient and controlled lithium battery charging. It offers flexibility in charging currents and cut-off voltages, making it suitable for a variety of applications where fast and reliable battery charging is essential. Sharvielectronics Tags, IP2312, IP2312 Module, Battery Charging Module, Lithium Battery Charging Module, Lithium Battery Module, Li-Ion Battery Charging Module.
To buy More Battery Charging Modules: Click Here

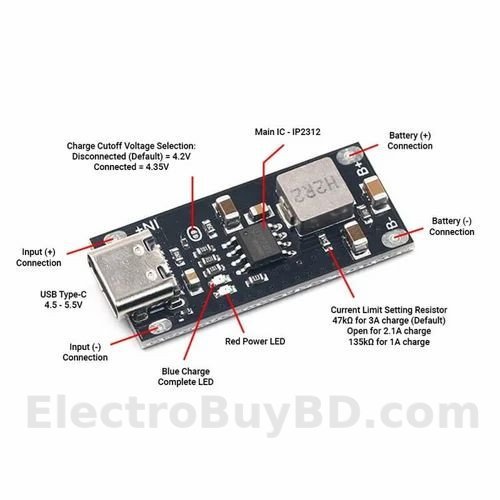

Indicator Lights
Work Indicator: Red
Full Charge Indicator: Blue
Features:
The IP2312 uses a full CC/CV charging mode.
When the battery voltage is lower than 3V, it enters the trickle charge mode and charges the battery with a charge current of 100mA.
When the battery voltage is greater than 3V, enter the constant current charging mode to charge the battery with the set constant current charging current.
When the battery voltage is close to 4.2V and the charging current is less than 300mA, it enters the constant voltage charging mode. After entering the constant voltage mode, the charging is stopped after every 4 minutes, and the battery voltage is detected to be higher than 4.15V: if it is higher than 4.15V, the charging is stopped; otherwise, the charging is continued, and then the detection is performed after 4 minutes.
When the battery is fully charged, if it detects that the battery voltage is lower than 4.1V, it will turn on to charge the battery.
Features/Specs:
Main Control Chip: IP2312
Charging Mode: Full CC/CV Charging Mode
Input Voltage Range: 4.5V to 5.5V
Default Charging Current: 3A
Input Connector: Type-C USB
Charge Cut-off Voltage Options: 4.2V or 4.35V

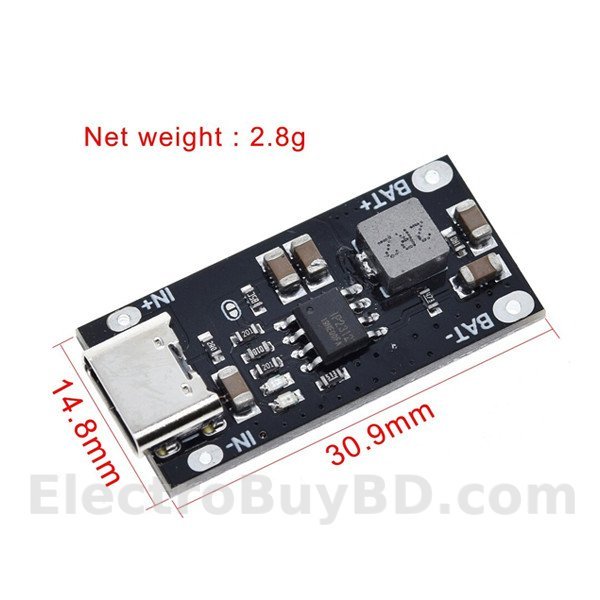

Length:35 mm
Width: 15 mm
Height: 5 gm
Datasheet: IP2312Package Includes:
1 x IP2312 â 3A Lithium Battery Fast Charge Module With USB Type-C
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
