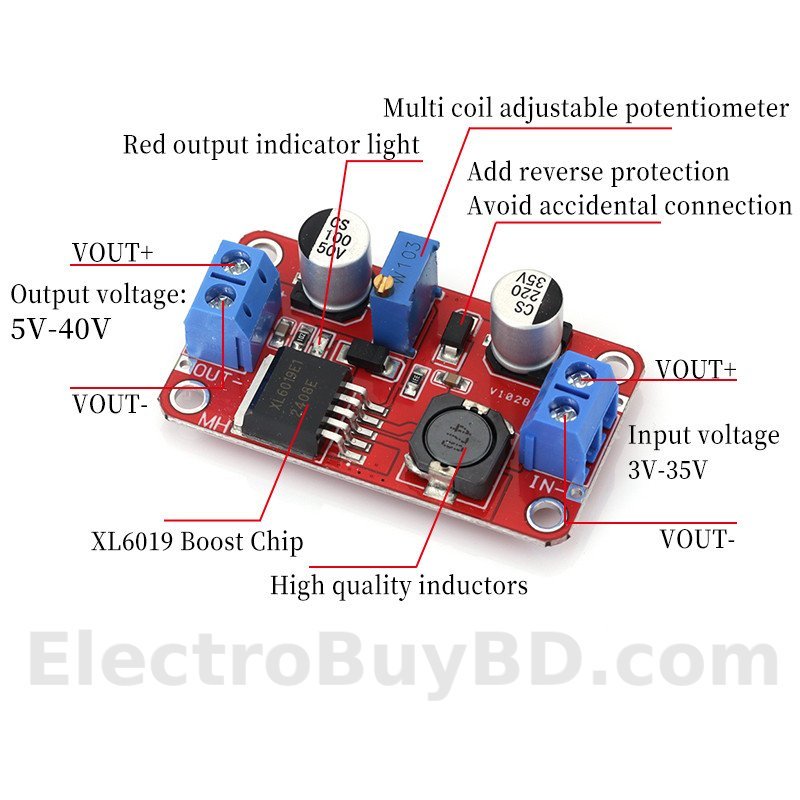

Boost your project's power capabilities with the XL6019 DC-DC Adjustable Boost Power Module- 5A. This robust module is engineered to elevate a lower input voltage to a higher output voltage, adjustable via a built-in potentiometer. It's capable of handling a wide input voltage range from 3V to 32V and can efficiently boost this to an output voltage ranging from 5V up to 35V, making it incredibly adaptable for many different electronic applications. The module can deliver up to 5A output current, providing substantial power for your more demanding projects.

The XL6019 DC-DC Adjustable Boost Power Module- 5A stands out with its high efficiency, capable of reaching up to 94%. It's designed with a high switching frequency of 400kHz, which allows for smaller external components, leading to a more compact overall design. Additionally, the module includes various protection features such as over-current and short-circuit protection, ensuring your electronic creations are safe during operation. Whether you’re working on battery-powered projects, constructing a DIY power supply, or need an adjustable voltage source, this power module is a reliable and powerful solution that will keep your devices running smoothly.

Specification of XL6019 DC-DC Adjustable Boost Power Module- 5A:
With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
Wide input voltage range, the input voltage up to 35V.
Adjustable output voltage, maximum support 40V.
The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
System conversion efficiency can achieve 90% above, convenient thermal design.
TO263-5 l standard packaging, suitable for booster application within 30W.
